How to make a Digiscoping attachment

Howdee all,

Instead of spending 100 dollars plus on a digiscoping attachment Jeff decided to make his own. This is the second one he has made. My first camera(Casio Xlim) died and we could not use the old attachment with the new camera(Canon A590is). (the lenses were different sizes)  So for less than 10 dollars we have a decent attachment.

All circumferences and holes were smoothed and sized using a drummel tool.

So here is how Jeff put it together..

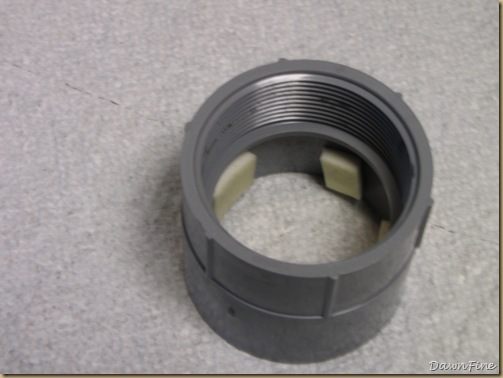

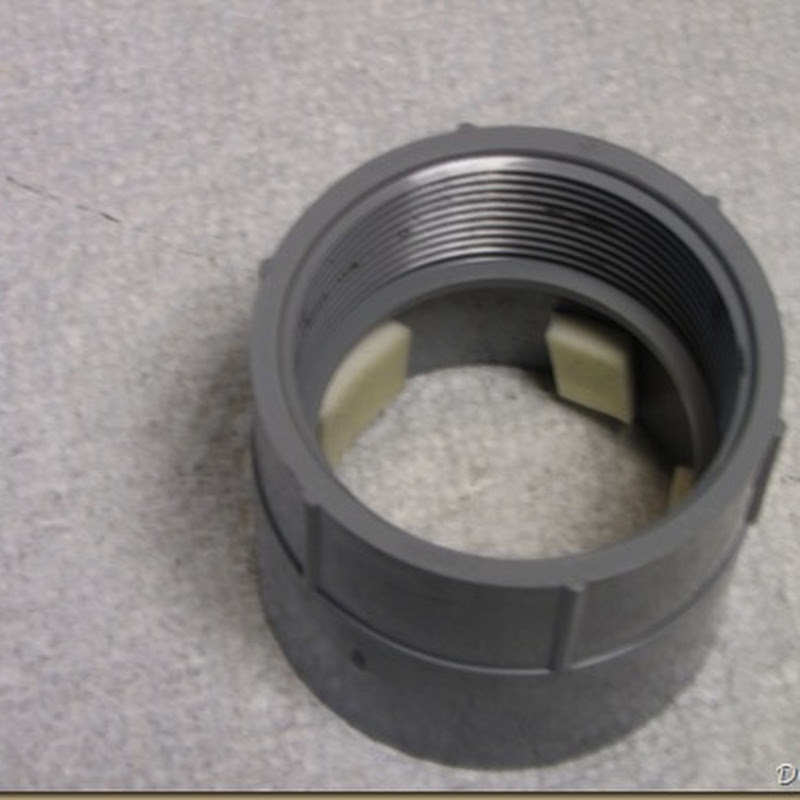

Plastic plumbing fitting from Home Depot .the white is weather stripping to snug around scope lens

digiscoping setup_20090709_001

   Blue is foam board is glued to a black washer which is glued to a toilet bowl washer.

Glue used was J B Kwink

digiscoping setup_20090709_002

An extra washer is used to make the lens of the camera to be 1mm away from the scope

digiscoping setup_20090709_003The extra washer is put into the main plastic plumbing fixture digiscoping setup_20090709_004

Then the remaining glued washers put into the main gray plastic body on top of black washerdigiscoping setup_20090709_005no glue used in this step..fits snugglydigiscoping setup_20090709_006  Camera fits into the topdigiscoping setup_20090709_007    This shows how the camera fits in..note the white weather stripping is coming loose ..will replace with a stronger weather stripping

digiscoping setup_20090709_010 Checking out the fit

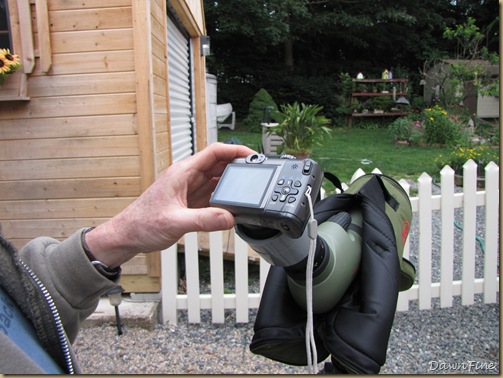

digiscoping setup_20090709_011digiscoping setup_20090709_016  Taking a photodigiscoping setup_20090709_015

its not a perfect system…you need to hold the camera steady..but it lines the camera up with the scope. We haven't used this particular set up with this camera very long. We used it with my older camera and I got some really great photos.

There will probably be a bit of tweaking to do.

Tomorrow we will test it again. At the BwBTC Birdie outing in Milford, Ct.
